Industrial Gaskets & Sealing Solutions
Industrial gaskets are the critical sealing elements required to prevent leakage at flanged pipe joints, valves, and equipment connections. Engineered to withstand high pressures, extreme thermal fluctuations, and chemical aggression, our comprehensive range of high-performance gaskets ensures mechanical integrity, environmental safety, and zero-leak performance across your entire piping infrastructure.

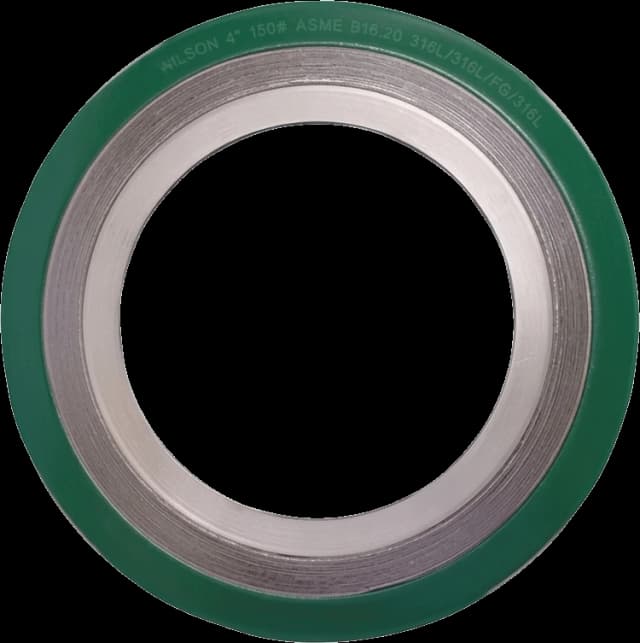

Spiral Wound Gasket
Semi-metallic gaskets engineered with alternating layers of metallic strip and soft non-metallic filler, offering exceptional resilience and sealing performance under high pressure and temperature cycles.
- Type: Standard Spiral Wound (Style CG - with Outer Guide Ring)
- Size Range: ½" to 36" (DN15 – DN900) [Custom sizes available up to 60"]
- Materials: Stainless Steel (304, 316L) winding with Graphite, PTFE, or Mica filler
- Standards: ASME B16.20, EN 1514-2

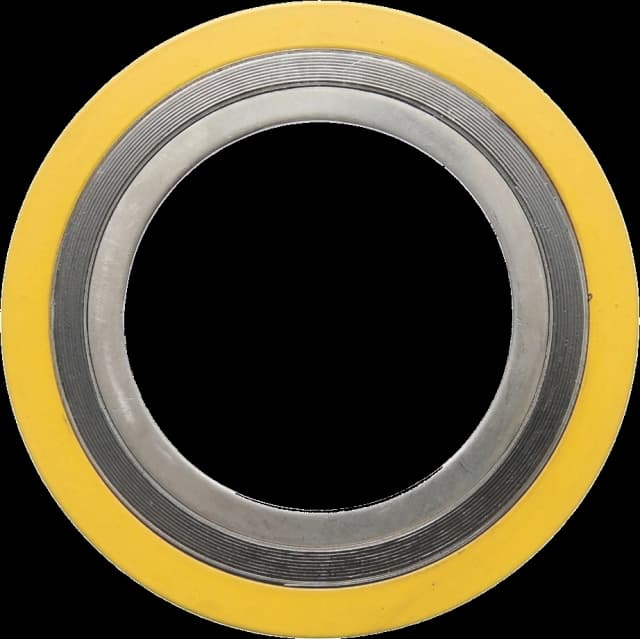

Spiral Wound Gasket with Inner Ring
Premium semi-metallic gaskets featuring an additional internal metallic ring to prevent winding buckling, protect the sealing element from process media, and minimize fluid turbulence.
- Type: Spiral Wound with Inner & Outer Rings (Style CGI)
- Size Range: ½" to 36" (DN15 – DN900)
- Materials: Carbon Steel outer ring; SS304/SS316L inner ring and winding; Graphite/PTFE filler
- Standards: ASME B16.20, EN 1514-2

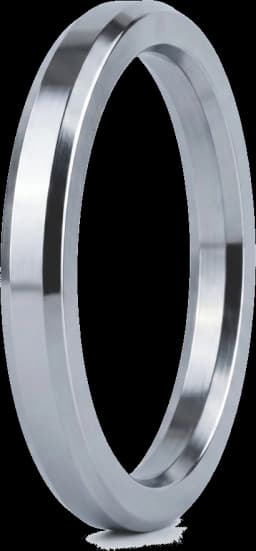

RTJ (Ring Type Joint) Gasket
Heavy-duty, solid metallic ring gaskets precision-machined for high-pressure and high-temperature oilfield and petrochemical applications, designed to fit into specific grooved flange faces.
- Type: Oval and Octagonal Ring Joint Gaskets (R, RX, and BX series)
- Size Range: ½" to 24"
- Materials: Soft Iron, Low Carbon Steel, SS304, SS316, Inconel
- Standards: ASME B16.20, API 6A

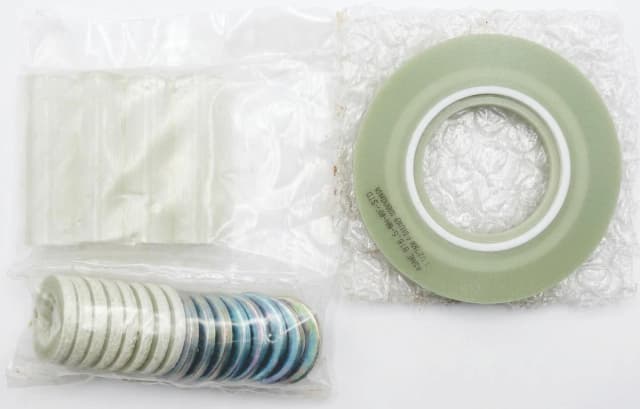

Flange Insulation Kit
Specialized multi-component sealing and insulation sets designed to eliminate galvanic corrosion in dissimilar metal piping and provide electrical isolation for cathodic protection systems.
- Type: Flange Isolation Gasket Kit (Includes insulating gasket, sleeves, and washers)
- Size Range: ½" to 36" (DN15 – DN900)
- Materials: G-10/G-11 Epoxy Glass, Phenolic, Neoprene, PTFE
- Pressure Rating: Class 150 to 2500

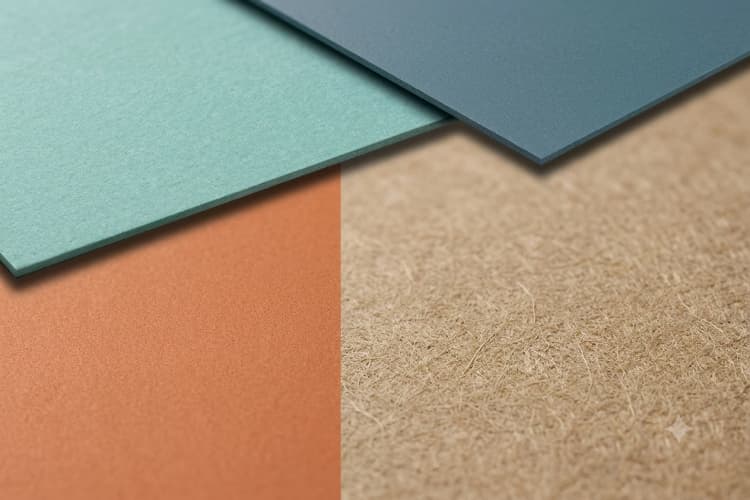

Non-Asbestos & Asbestos Gaskets
Versatile compressed sheet gaskets cut to precision dimensions, offering reliable fluid containment across general utility, water, gas, and low-to-medium pressure chemical lines.
- Type: Cut Sheet Flange Gaskets (Full Face / Inside Bolt Circle)
- Size Range: ½" to 36" (DN15 – DN900)
- Materials: Compressed Non-Asbestos Fiber (CNAF), Aramids, NBR binders, and traditional Asbestos sheets
- Standards: ASME B16.21, EN 1514-1

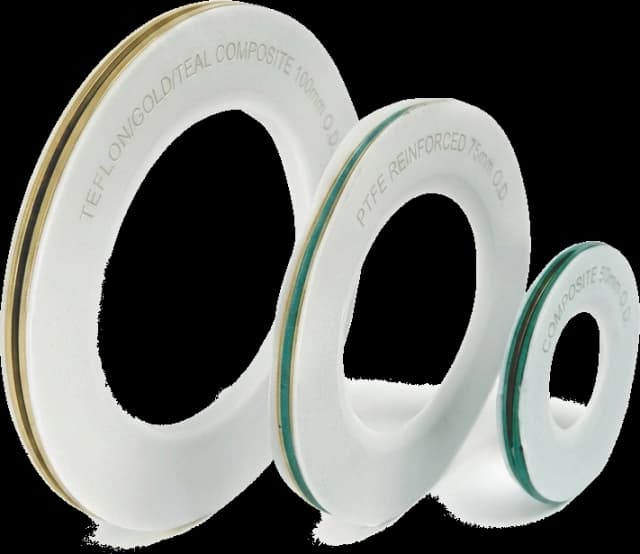

Teflon (PTFE) Gasket
Chemically inert gaskets providing virtually universal resistance to aggressive acids, alkalis, solvents, and corrosive chemicals, making them ideal for high-purity processing applications.
- Type: Virgin PTFE, Expanded PTFE (EPTFE), and Filled PTFE Gaskets
- Size Range: ½" to 36" (DN15 – DN900)
- Key Feature: Excellent electrical insulation and near-zero chemical reactivity
- Standards: ASME B16.21

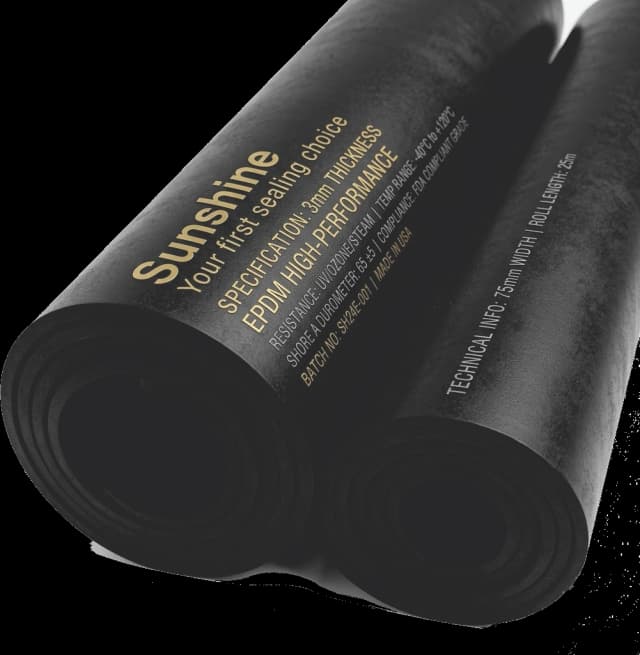

EPDM (Rubber) Gasket
Elastomeric gaskets offering superior sealing flexibility, excellent resistance to water, ozone, and weathering, making them perfect for low-pressure water distribution and HVAC applications.
- Type: Molded or Cut Elastomeric Rubber Gaskets
- Size Range: ½" to 36" (DN15 – DN900)
- Materials: EPDM (Ethylene Propylene Diene Monomer), Neoprene, NBR, Viton
- Standards: ASME B16.21
