Scaffolding Systems

Indus Trading Co. supplies a complete range of scaffolding components engineered for safety, load-bearing reliability, and ease of assembly across construction, maintenance, and industrial plant applications. Our scaffolding solutions are built to support personnel, tools, and materials at height, ensuring compliance with international safety standards for demanding site conditions, including oil & gas and industrial facilities.

Standards (Uprights)

Vertical load-bearing tubes that transfer the full structural weight of the scaffold down to the base, forming the primary vertical support of the system.

  • Function: Primary vertical structural load distribution
  • Type: Spigot or Ringlock/Cuplock connection systems
  • Material options: High-tensile structural steel (Galvanized or Black)
  • Standards: EN 12811, BS 1139, ANSI A10.8

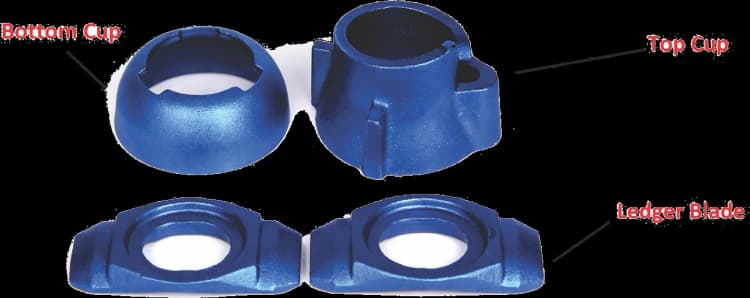

Cuplock scaffold upright connection components

Ledgers

Horizontal tubes connecting standards along the length of the structure, providing longitudinal stability and forming the framework for platform support.

  • Function: Horizontal framework and longitudinal structural stability
  • Material options: Heavy-duty hot-dipped galvanized steel
  • Standards: EN 12811, BS 1139

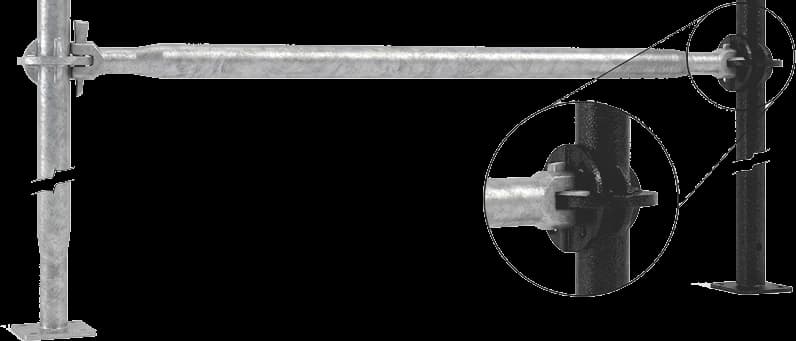

Horizontal scaffold ledger tube with connectors

Transoms

Horizontal cross-members that rest on the ledgers and directly support the platform boards, distributing working loads evenly across the structure.

  • Function: Direct platform board support and load distribution
  • Type: Intermediate, structural, or board-retaining transoms
  • Material options: High-grade galvanized steel
Scaffold transom cross-member

Braces

Diagonal members installed across standards and ledgers to add rigidity, resist lateral movement, and prevent structural sway or collapse under load.

  • Function: Lateral wind-load resistance and anti-sway stability
  • Type: Face bracing, longitudinal bracing, and plan bracing
  • Material options: Light-weight high-strength structural tubing

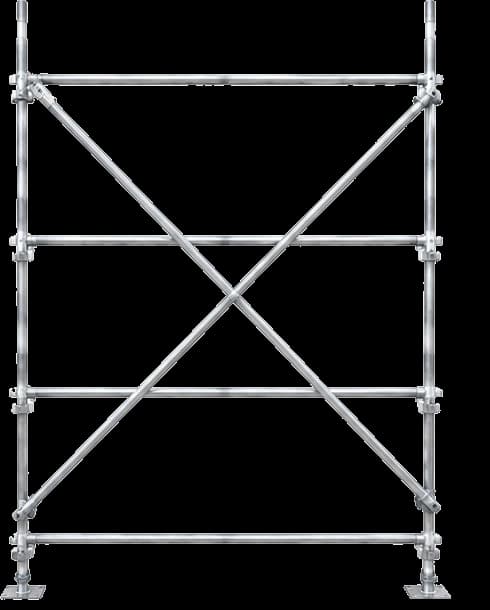

Diagonal scaffold bracing frame

Base Plates & Sole Boards

Ground-contact components that spread the structure's load over a wider area, preventing sinking or shifting on soft or uneven surfaces.

  • Function: Base foundation load distribution and ground protection
  • Type: Fixed base plates, adjustable screw jacks, and heavy-duty timber sole boards
  • Material options: Forged/press-formed steel and premium structural timber

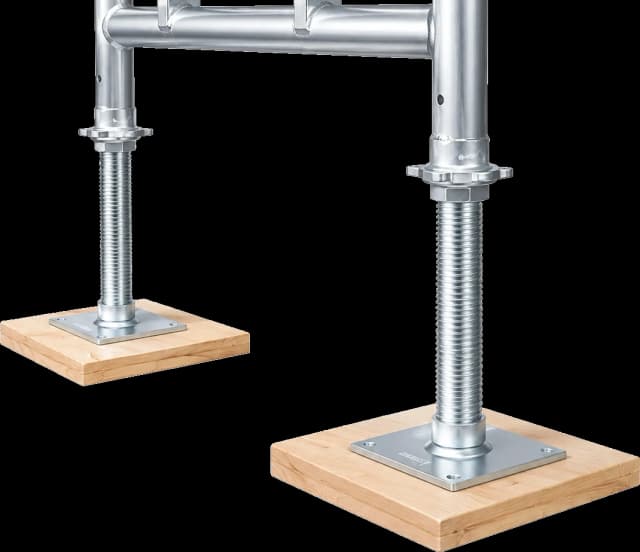

Adjustable scaffold base plate on timber sole board

Platforms & Boards

Planks or metal decking that form the working surface, engineered to safely bear the weight of personnel, tools, and materials during operations.

  • Function: Safe, slip-resistant working platform
  • Type: Steel batten plates, aluminum decking, and laminated timber scaffold boards
  • Standards: BS 2482 (for timber), EN 12811 (for steel)

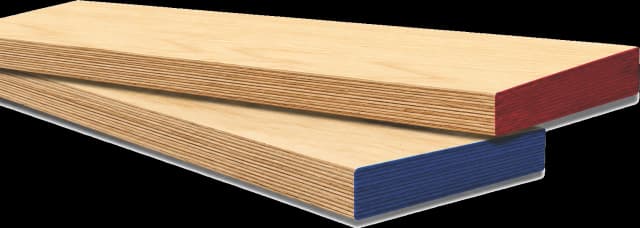

Steel and timber scaffold platform boards

Couplers & Clamps

Connection fittings that join tubes securely in tube-and-clamp scaffold systems, available in fixed, swivel, and putlog variants to suit different structural configurations.

  • Function: High-torque rigid structural node connections
  • Type: Right-angle couplers, swivel couplers, sleeve couplers, and putlog (single) clamps
  • Material options: Drop-forged steel or pressed steel
  • Standards: EN 74, BS 1139
Right-angle scaffold couplerSwivel scaffold couplerSleeve scaffold coupler
