Pipe Fittings
Pipe fittings serve as the crucial backbone of any piping system, providing the necessary mechanical connections to redirect flow, change pipe diameters, branch off pipelines, or securely close line ends. Manufactured to withstand extreme pressures, thermal fluctuations, and corrosive environments, our industrial fittings ensure leak-free integrity and optimal fluid dynamics across municipal, chemical, oil, and gas networks.

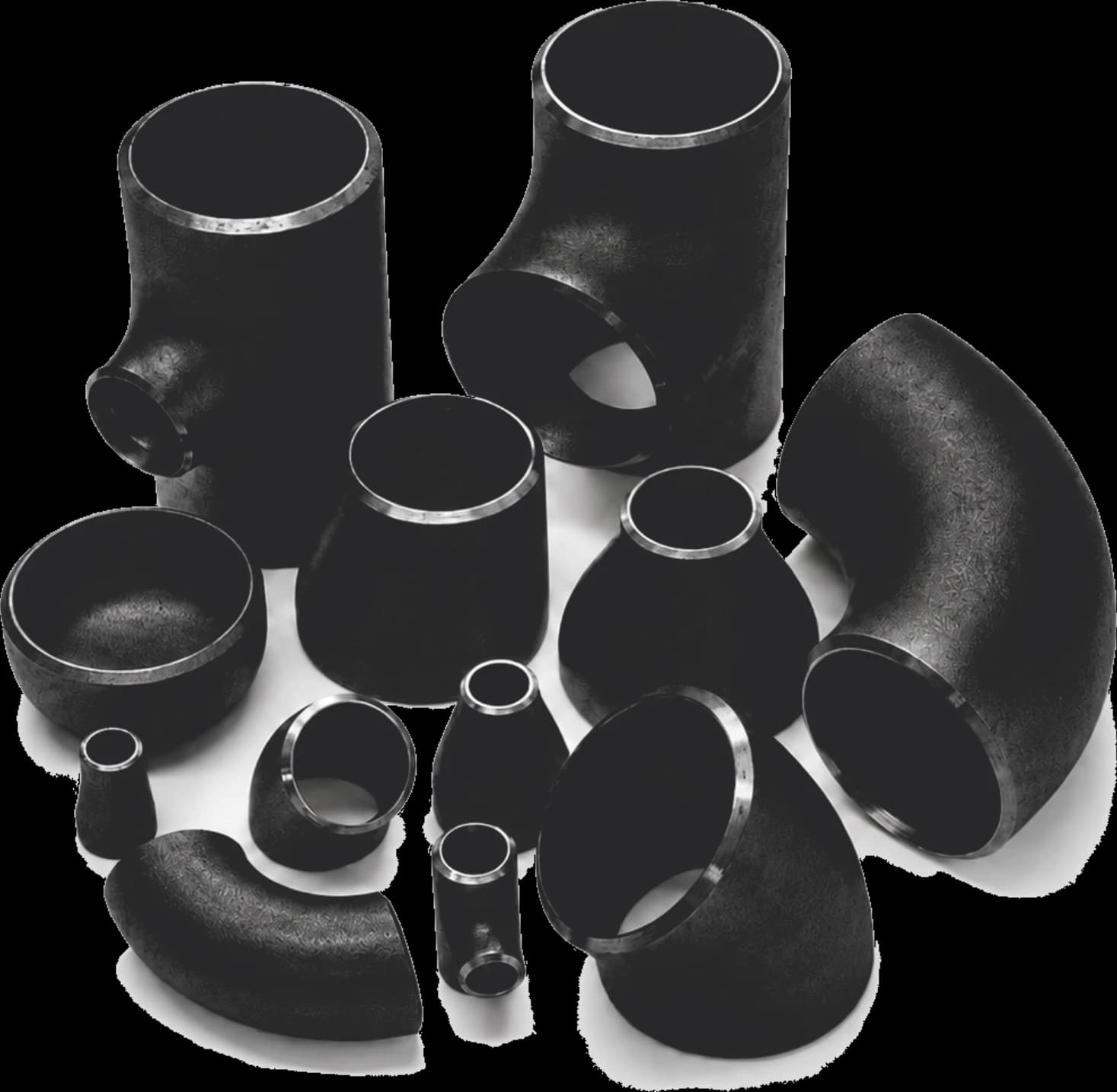

Carbon Steel Pipe Fittings
- Type:
- Buttweld, Socket Weld & Threaded Fittings (including Elbows, Tees, Reducers, Caps, and Couplings)
- Size Range:
- ½" to 36" (DN15 – DN900)
Material Standards & Grades:
- ASTM A234 WPB: The standard specification for wrought carbon steel and alloy steel piping fittings of seamless and welded construction, widely used for moderate and high-temperature service.
- ASTM A105: Premium forged carbon steel components intended for high-pressure, ambient-, and higher-temperature service in piping systems.
- ASME B16.9: Covers overall dimensions, tolerances, ratings, testing, and markings for factory-made wrought buttwelding fittings in sizes ½" through 48".
- ASME B16.11: The standard governing dimensions, pressure-temperature ratings, tolerances, and markings for forged steel fittings, covering both socket-welding and threaded types.

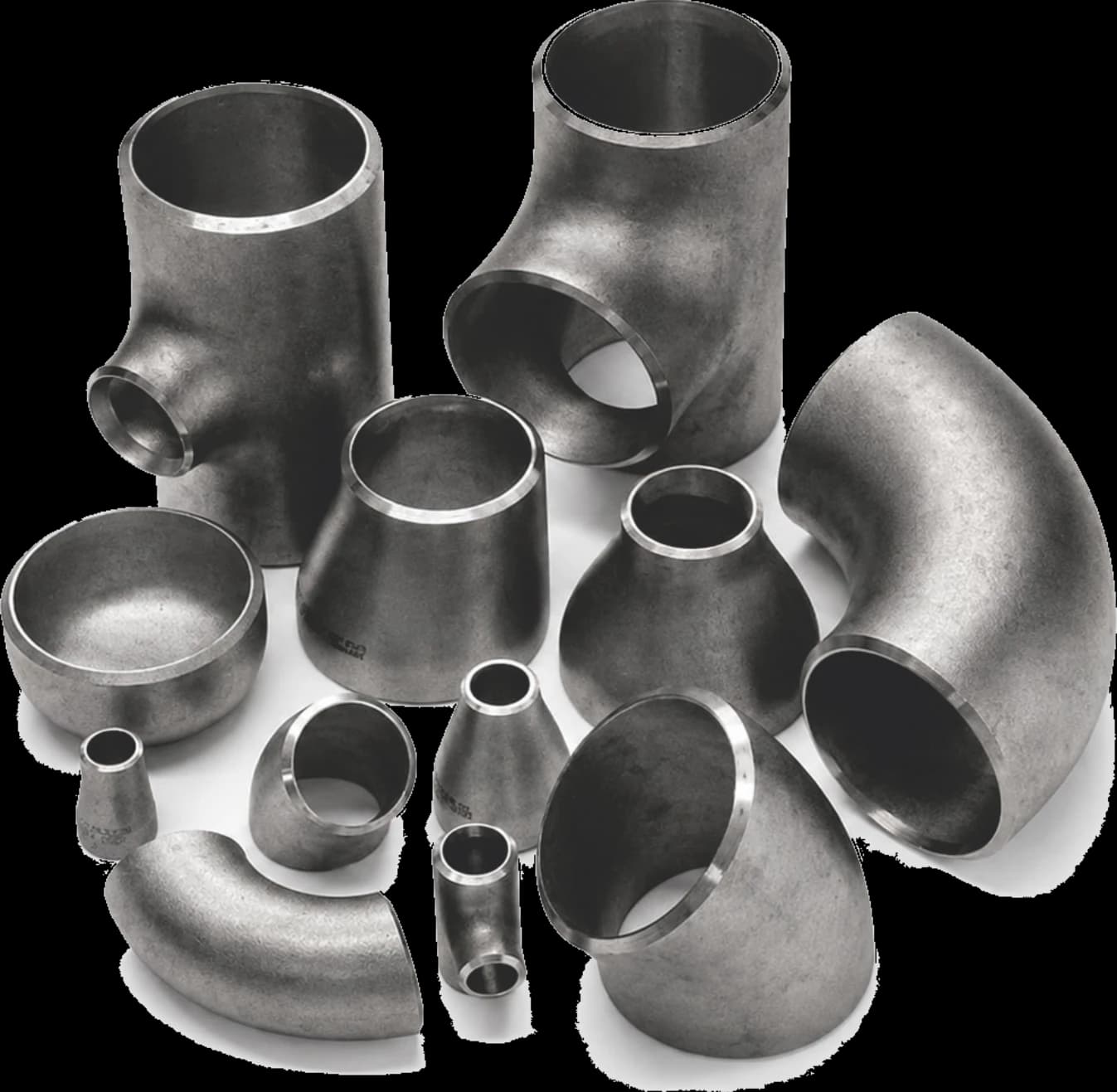

Stainless Steel Pipe Fittings
- Type:
- Seamless & Welded
- Size Range:
- ½" to 36" (DN15 – DN900)
Material Standards & Grades:
- ASTM A312: The standard specification for seamless, straight-seam welded, and heavily cold worked austenitic stainless steel pipes intended for high-temperature and general corrosive service.
- Grades 304 / 304L: The most versatile and widely used stainless steel grade, providing excellent resistance to atmospheric corrosion and many organic and inorganic chemicals.
- Grades 316 / 316L: Molybdenum-bearing stainless steel that offers vastly superior resistance to chlorides, marine environments, and severe chemical pitting compared to 304.
- ASTM A790 (Duplex / Super Duplex): High-performance grades (such as UNS S32205 / S32750) providing a balanced combination of high strength and exceptional resistance to stress corrosion cracking.
